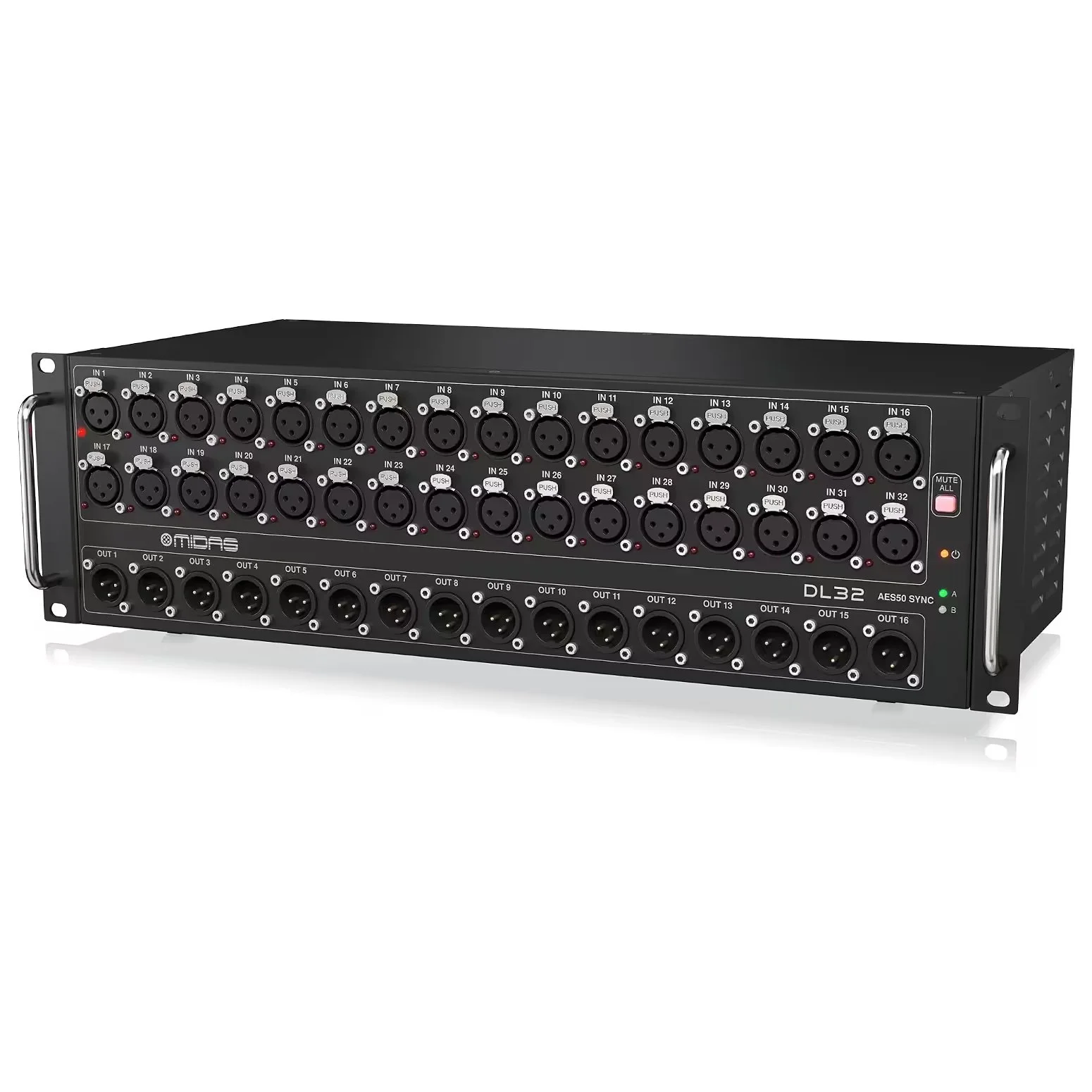

Midas DL32 Stage Box

Midas DL32 Stage Box

Overview The Midas DL32 Stage Box is a high-performance digital stage box designed for live sound and installed audio applications. Built with Midas’ renowned preamp quality and rugged construction, the DL32 serves as a reliable I/O hub for digital audio networks, providing 32 channels of remote mic/line inputs and 16 channels of line outputs with low-latency digital transport.

Key Features

• 32 remote-controlled microphone/line inputs with Midas microphone preamps

• 16 line outputs

• AES50 networking for ultra-low latency, high-channel-count digital transport

• Rugged tour-grade metal chassis for road reliability

• Remote input gain control and preamp settings from a compatible digital console

• Word clock I/O for synchronization

• Redundant power option via external PSU (depending on configuration)

• Front-panel status LEDs for network and power indications

• Remotely controllable phantom power per input (via console)

• Support for long cable runs over Cat5e/Cat6 with AES50

• Compatibility with Midas/Digico digital consoles and other AES50-enabled devices

Inputs and Outputs

• Inputs: 32 XLR female mic/line inputs with Midas preamps, remote gain control

• Outputs: 16 XLR male line outputs

• Digital: Dual AES50 ports (A and B) for primary and stage-bus connections (redundancy and daisy-chaining)

• Clocking: BNC Word Clock In/Out depending on variant

• Control: Ethernet/remote control port for system management (varies by model)

Performance

• Ultra-low latency AES50 transport suitable for live FOH and monitor mixes

• High headroom and low noise from Midas preamps, delivering clear, detailed audio

• Robust channel count allows for large stage setups and complex routing

• Stable synchronization and clocking for multi-device networks

Use Cases

• Live concert stages requiring centralized mic preamps on stage

• Theatre productions with extensive input requirements and remote control from FOH

• Houses of worship and installed sound systems needing a reliable digital I/O node

• Festival and touring rigs where durability and Dante-free AES50 networking are preferred

Physical and Environmental

• Dimensions and weight: Tour-friendly, rack-mountable or stage-deployable chassis (consult specific model specs for exact measurements)

• Operating temperature: Designed for typical live sound environments; avoid extreme conditions

• Mounting: Designed for stage placement or flight/rack cases; may include rubber feet and rack ears depending on configuration

Compatibility

• Native compatibility with Midas and DiGiCo consoles that support AES50

• Integrates into AES50 networks; may require appropriate routing/clocking configuration when mixed with other digital formats

• Some models can interface with CobraNet/Dante/MADI through external gateways or conversion hardware

Typical Accessories

• Stage box snake Cat5e/Cat6 cables for AES50 connections

• Rack ears, flight case, or road case

• External power supply or redundant PSU accessories

• Digital snakes and converter interfaces for other network formats

Notes

• Exact feature set and physical connections vary by production run and specific DL32 variants; verify the model’s rear-panel layout and spec sheet when planning integration.

• For remote preamp control and full feature access, use with a compatible Midas or DiGiCo console or an AES50-compatible control surface.

Conclusion The Midas DL32 Stage Box is a robust, pro-grade digital I/O stage box well suited for touring and installed audio systems that require high channel counts, reliable Midas preamps, and low-latency AES50 networking. Verify exact model specifications for connectivity and power options when specifying it into a system.
